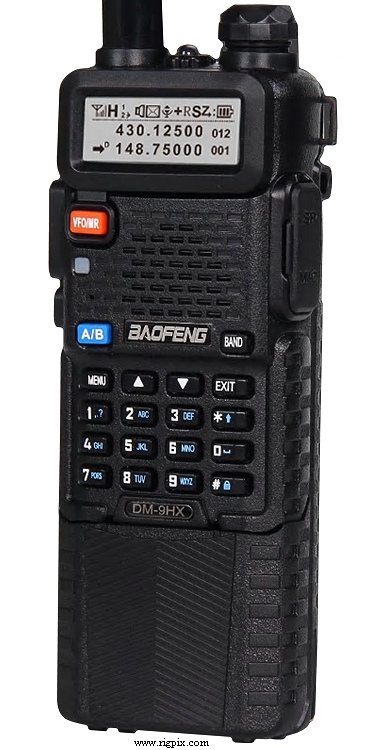

Baofeng DM-9HX
Confidence score: 50%
Estimated value
14€
Theoretical estimate
12€
Minimum
17€
Maximum
Specifications
GENERAL
- Type
- Amateur VHF/UHF transceiver
- Frequency range
- TX: 136-174 / 400-480 MHz RX: 65-108 / 136-174 / 400-480 MHz
- Tuning steps
- 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 kHz
- Frequency stability
- ? ppm
- Mode
- TX: FM / NFM / DMR RX: FM / NFM / WFM / DMR
- Channels / memory management
- 1024 regular
- Repeater shift / offset
- Freely programmable
- Power supply
- 7.4 VDC (Li-Ion battery pack)
- Current drain / power consumption
- RX: Nax 380 mA TX: Max 1.5 A
- Antenna impedance / connector
- 50 ohm / SMA Male
- Dimensions (W*H*D)
- 58*140*32 mm (2.28*5.51*1.26")
- Weight
- ? g (? oz)
- Other features
- CTCSS/PL and DCS. LED flashlight. DMR Tier I and II. 256 contacts.
RECEIVER SECTION
- Receiver system
- ?
- Sensitivity
- FM: 0.18 uV (12 dB SINAD) DMR: 0.22 uV (BER <5%)
- AF output power / speaker
- 1 W at 10% distortion / ? ohm
TRANSMITTER SECTION
- Max FM deviation (Factory set)
- FM: ±5 KHz NFM: ±2.5 KHz
- Spurious emissions
- Better than -? dB
- Microphone impedance / connector
- ? ohm / ?-pin
- Microphone input level
- ? mV
