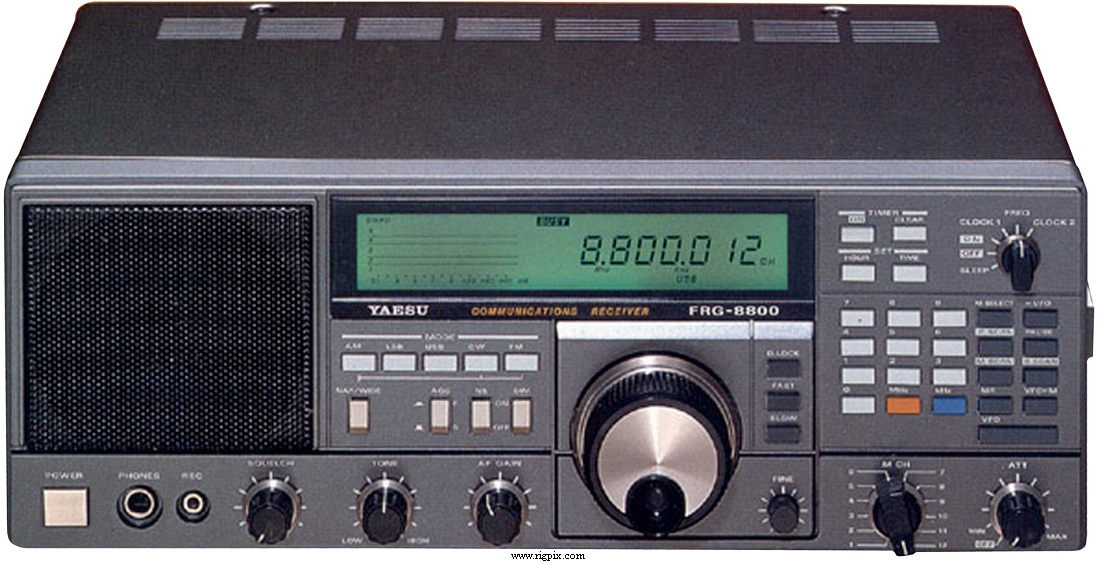

Yaesu FRG-8800
Confidence score: 50%
Estimated value
280€
Theoretical estimate
246€
Minimum
315€
Maximum
Specifications
GENERAL
- Type
- HF/VHF receiver
- Frequency range
- 0.15-30 MHz (118-174 MHz option)
- Tuning steps
- Specified as "Fast" and "Slow"
- Frequency stability
- Less than 300 hz during the first 30 minutes after power on. Less than 50 Hz during any 30 minute period thereafter.
- Mode
- AM / FM / SSB / CW
- Channels / memory management
- 12 regular RAM storage with battery backup (Three LR6 / AA batteries)
- Power supply
- Mains: 100/120/220/240 VAC (3-pin IEC C14 connector) or 12 VDC option
- Current drain / power consumption
- 35 VA (No signal input) 5 VA (Timer standby/power switch off)
- Antenna impedance / connector
- 50 ohm / SO-239 500 ohm / Spring terminals
- Dimensions (W*H*D)
- 334*118*225 mm (13.15*4.65*8.86")
- Weight
- 6.1 Kg (13.45 lb), without options
- Other features
- CAT control. Dual 24 hr clocks.
RECEIVER SECTION
- Receiver system
- Double conversion superheterodyne 1st IF: 47.055 MHz 2nd IF: 455 KHz
- Sensitivity
- AM (10 dB S+N/N) 0.15-1.6 MHz: 30 uV 1.6-30 MHz: 4 uV 118-174 MHz: 10 uV, with VHF option FM (20dB S+N/N) 1.6-30 MHz: 1 uV 118-174 MHz: 2 uV, with VHF option SSB/CW (10 dB S+N/N) 0.15-1.6 MHz: 3 uV 1.6-30 MHz: 0.4 uV 118-174 MHz: 1 uV, with VHF option
- Selectivity
- AM wide 6 KHz (-6 dB) 15 KHz (-50 dB) AM narrow 2.7 KHz (-50 dB) 8 KHz (-50 dB) FM 12.5 KHz (-6 dB) 30 KHz (-40 dB) SSB/CW 2.7 KHz (-6 dB) 8 KHz (-50 dB)
- AF output power / speaker
- 1.4 W at 10% distortion / 8 ohm
- External speaker connector
- TS "Minijack" (3.5 mm), 4-16 ohm
