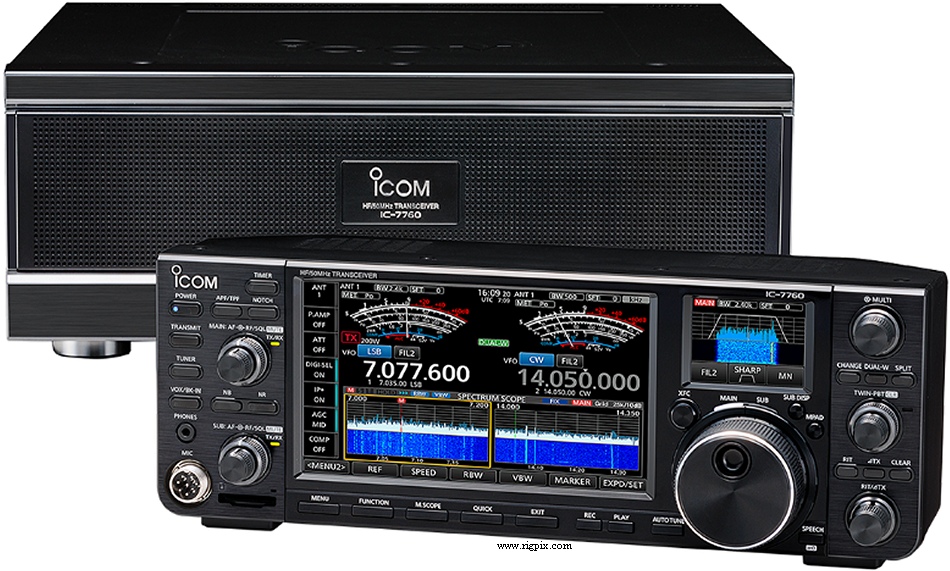

Icom IC-7760
Score de Confiance : 50%
Cote Estimée
4500€
Estimation Théorique
3825€
Minimum
5175€
Maximum
Caractéristiques Techniques
Général
- Type de matériel
- Radio HF/VHF Émetteur-récepteur
- Plage de fréquences
- TX: 10-160 m + WARC / 6 m (Also 60 m for USA and 136 KHz for Europe) RX: 0.03-60 MHz
- Pas d'accord
- Down to 1 Hz
- Stabilité en fréquence
- Less than ±0.5 ppm @ 0 to 50°C (32 to 122°F)
- Modes de modulation
- AM / FM / SSB / CW / RTTY / PSK31 and 63
- Canaux / Mémoires
- 99 regular 2 scan edges
- Alimentation
- RF deck Mains: 90-264 VAC (3-pin IEC C14 connector) Control head 15 VDC (Male barrel jack, center positive)
- Consommation
- RX: 150 VA TX: Max 800 VA
- Impédance / Connecteur antenne
- 16.7-150 ohm (ATU range) / Four SO-239 + two BNC (RX in/out)
- Dimensions (L*H*P)
- Control head: 340*118*104 mm (13.4*4.6*4.1") RF deck: 425*149*442 mm (16.7*5.9*17.4")
- Poids
- Control head: 2.3 Kg (5.1 lb) RF deck: 15.8 Kg (34.8 lb)
- Autres fonctions
- Separate control head and RF deck. Remote control via LAN. Two touch displays; one 7" main and one 2.4" sub. Dual identical independent Récepteurs and two speakers. Dual spectrum/waterfall display. Audio scope display. Two DSP (One in the RF deck and one in the controller). Digital preselector. A total of 15 separate bandpass filters. I/Q Sortie. The transmitter employs digital pre-distortion technology for a clean Sortie signal. Built-in auto-ATU. RTTY/PSK encoder/decoder. SD card slot. DVI-D jack for external display. Main/Sub band tracking function for diversity reception. VOX. Transverter jack. Microphone equalizer. CTCSS/PL. Screen saver. USB port for RC-28, keyboard, mouse and flash drive connection. Electronic keyer.
Réception
- Système de réception
- Direct sampling superheterodyne IF: 12 KHz
- Sensibilité
- HF: Preamp 1 ON. 50 MHz: Preamp 2 ON. AM (10 dB S/N. Soft filter) 0.5-1.8 MHz: 6.3 uV 1.8-30 MHz: 2 uV 6 m: 1 uV FM (12 dB SINAD. Soft filter) 1.8-30 MHz: 0.5 uV 6 m: 0.32 uV SSB/CW (10 dB S/N. Soft filter) 135 KHz: 1.41 uV 1.8-30 MHz: 0.16 uV 6 m: 0.13 uV
- Sélectivité
- AM (Filter: Sharp, BW: 6 KHz) 6 KHz (-6 dB) 15 KHz (-60 dB) FM (Filter: Sharp, BW: 15 KHz) 12 KHz (-6 dB) 20 KHz (-60 dB) SSB (Filter: Sharp, BW: 2.4 KHz) 2.4 KHz (-6 dB) 3.6 KHz (-60 dB) CW (Filter: Sharp, BW: 500 Hz) 500 Hz (-6 dB) 700 Hz (-60 dB) RTTY (Filter: Sharp, BW: 500 Hz) 500 Hz (-6 dB) 700 Hz (-60 dB)
- Rejection d'image
- HF: 70 dB 6 m: 70 dB
- Puissance audio
- 2 W at 10% distortion / 8 ohm
- Prise HP externe
- Two TS minijacks (3.5 mm)
Émission
- AM
- 0.25-25 W
- FM
- 1-200 W
- SSB (PEP)
- 1-200 W
- CW
- 1-200 W
- RTTY/PSK
- 1-200 W
- Type de modulation
- AM: Digital low Puissance modulation FM: Digital reactance modulation SSB: Digital PSN modulation
- Max FM deviation (Factory set)
- ±? KHz
- Émissions parasites
- HF: Better than -50 dB 6 m: Better than -66 dB
- Impédance micro
- 600 ohm / 8-pin (Male locking ring jack)
- Microphone input level
- ? mV
